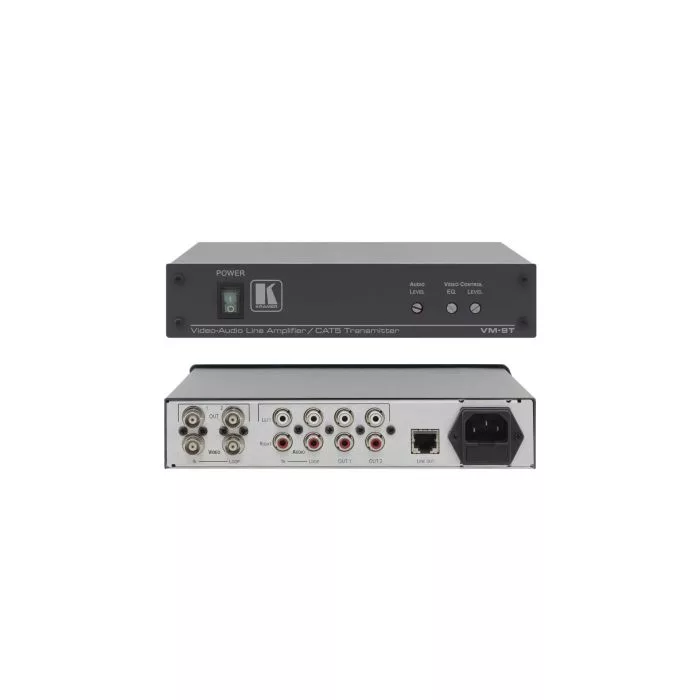

Wzmacniacz liniowy Kramer VM-9T

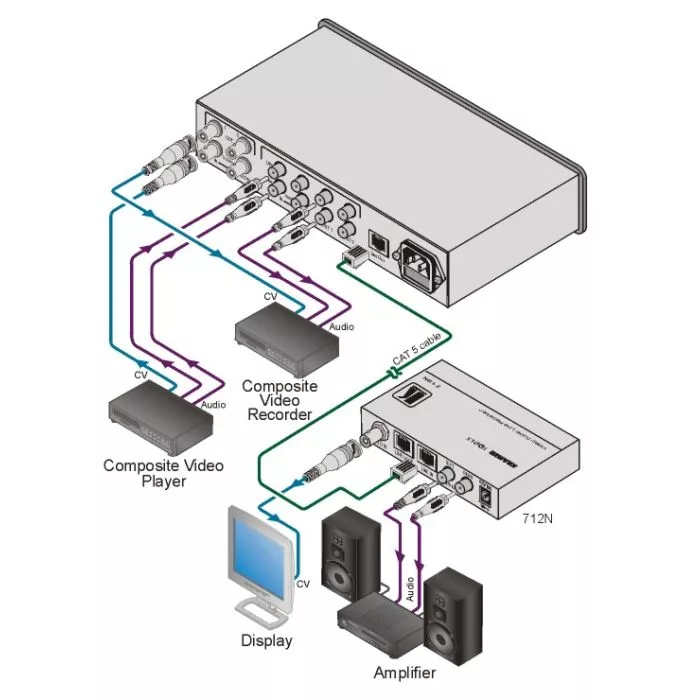

The VM−9T is a high−quality distribution amplifier for composite video and unbalanced stereo audio signals. It inputs one signal, provides correct buffering and isolation and distributes the signal to two identical outputs and one twisted pair output on an RJ−45 connector.

• High Bandwidth — 350MHz ( — 3dB).Looping Inputs with Selectable Video Input Signal Termination — 75 Ohm.Recessed Level (Gain) & EQ (Peaking) Controls Audio Level Control.System Range (Twisted Pair) — More than 500 meters (1500 feet). Greater distances possibledepending on signal resolution and cable.Cable (Twisted Pair) — UTP (unshielded twisted pair) such as CAT 5.Worldwide Power Supply — 100–240V AC.Desktop Size — Two units can be rack mounted side–by–side in a 1U rack space.
• INPUTS: — 1 looping composite video 1 Vpp/75_ on a BNC connector 1 looping stereo audio +4dBm, on RCA connectors
• OUTPUTS: — 2 composite video 1 Vpp/75_ on BNC connectors 2 stereo audio +4dBm, on RCA connectors 1 CAT5 on an RJ–45 connector
• MAX. OUTPUT LEVEL: — VIDEO: 2.4Vpp AUDIO: +21dBm
• BANDWIDTH (–3dB): — VIDEO: 350MHz AUDIO: 43kHz
• DIFF. GAIN: — 0.04%
• DIFF. PHASE: — 0.06 Deg.
• K–FACTOR: — <0.05%
