4–Channel 4K60 4:2:0 HDMI over Extended Reach HDBaseT Input Card with Selectable Embedded or De–embedded Analog Audio
Wszystkie parametryZwiń parametry⌄
Standardy
4K@60Hz (4:2:0), HDBaseT
Wejścia
HDBT
Audio
Balanced
Sterowanie
Ethernet, RS-232, IR
Seria
Input Card
Skrót właściwości
4–Channel 4K60 4:2:0 HDMI over Extended Reach HDBaseT Input Card with Selectable Embedded or De–embedded Analog Audio
Opis produktu

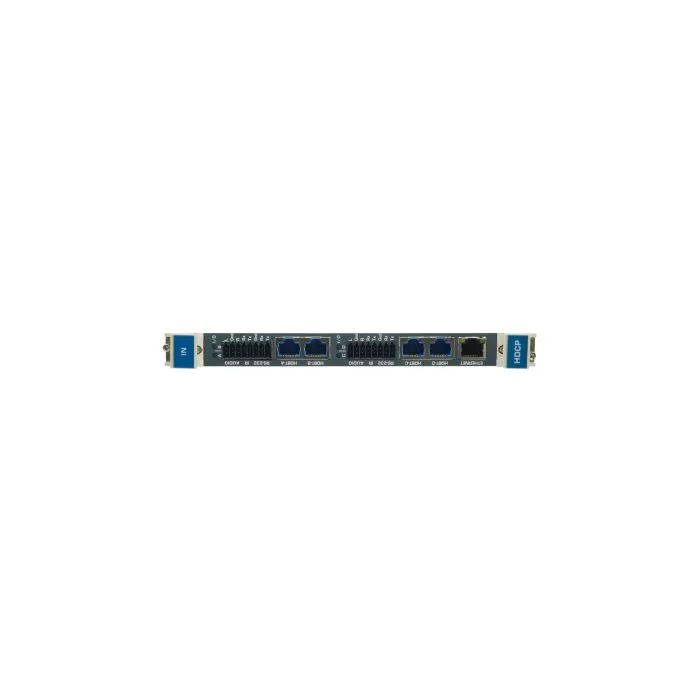

DTAxr−IN4−F32 is a 4−channel 4K60 4:2:0 HDMI, analog audio, bidirectional RS−232, Ethernet, & IR over HDBaseT twisted pair receiver card for the VS−3232 Series Modular Multi−Format Digital Matrix Switchers. The DTAxr−IN4−F32 inputs four extended reach HDBaseT signals with selectable embedded/de–embedded analog audio, bidirectional RS−232, Ethernet, and IR from the line to the chassis.
Pokaż pełny opisZwiń opis⌄
DTAxr−IN4−F32 is a 4−channel 4K60 4:2:0 HDMI, analog audio, bidirectional RS−232, Ethernet, & IR over HDBaseT twisted pair receiver card for the VS−3232 Series Modular Multi−Format Digital Matrix Switchers. The DTAxr−IN4−F32 inputs four extended reach HDBaseT signals with selectable embedded/de–embedded analog audio, bidirectional RS−232, Ethernet, and IR from the line to the chassis.
Max. Data Rate — 10.2Gbps (3.4Gbps per graphics channel).
Max. Resolution — 4K@60Hz (4:2:0).
Analog Audio Embedding/De–embedding — On the same jack
HDBaseT Range — Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC–UNIKAT cables.
