4–Channel 4K60 4:2:0 HDMI over Extended Reach HDBaseT Output Card with Selectable Embedded or De–embedded Analog Audio
Wszystkie parametryZwiń parametry⌄
Standardy
4K@60Hz (4:2:0), HDMI, HDBaseT
Wyjścia
HDBT
Audio
Balanced
Sterowanie
Ethernet, RS-232, IR
Seria
Output Card
Skrót właściwości
4–Channel 4K60 4:2:0 HDMI over Extended Reach HDBaseT Output Card with Selectable Embedded or De–embedded Analog Audio
Opis produktu

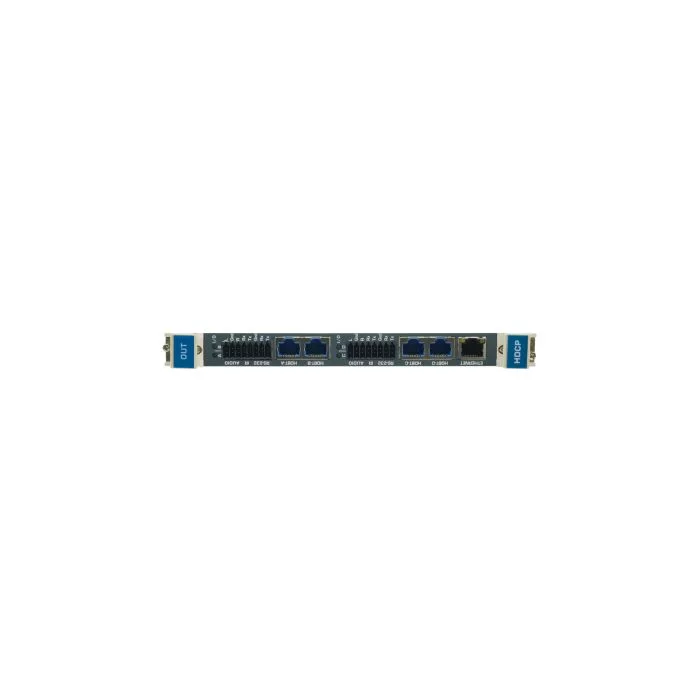

DTAxr−OUT4−F32 is a four−channel HDMI, analog audio, bidirectional RS−232, Ethernet, & IR over HDBaseT twisted pair transmitter card for the VS−3232 Series Modular Multi−Format Digital Matrix Switchers. The DTAxr−OUT4−F32 outputs four extended reach HDBaseT signals with analog audio, bidirectional RS−232, IR, and Ethernet from the chassis to the line.
Pokaż pełny opisZwiń opis⌄
DTAxr−OUT4−F32 is a four−channel HDMI, analog audio, bidirectional RS−232, Ethernet, & IR over HDBaseT twisted pair transmitter card for the VS−3232 Series Modular Multi−Format Digital Matrix Switchers. The DTAxr−OUT4−F32 outputs four extended reach HDBaseT signals with analog audio, bidirectional RS−232, IR, and Ethernet from the chassis to the line.
Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
