2–Channel 4K60 4:2:0 HDMI over Long Reach HDBaseT Output Card
Wszystkie parametryZwiń parametry⌄
Standardy
4K@60Hz (4:2:0), HDCP, HDTV, HDBaseT
Wyjścia
HDBT
Sterowanie
RS-232, IR
Seria
Output Card
Skrót właściwości
2–Channel 4K60 4:2:0 HDMI over Long Reach HDBaseT Output Card
Opis produktu

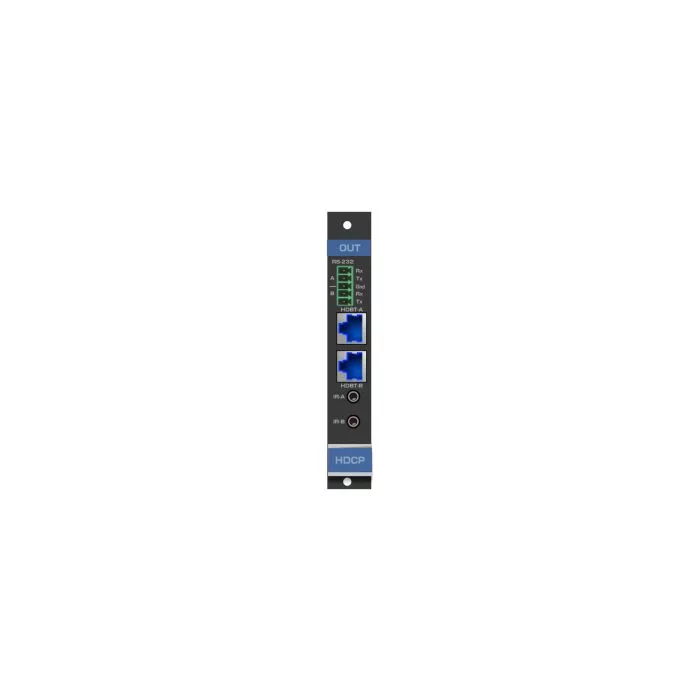

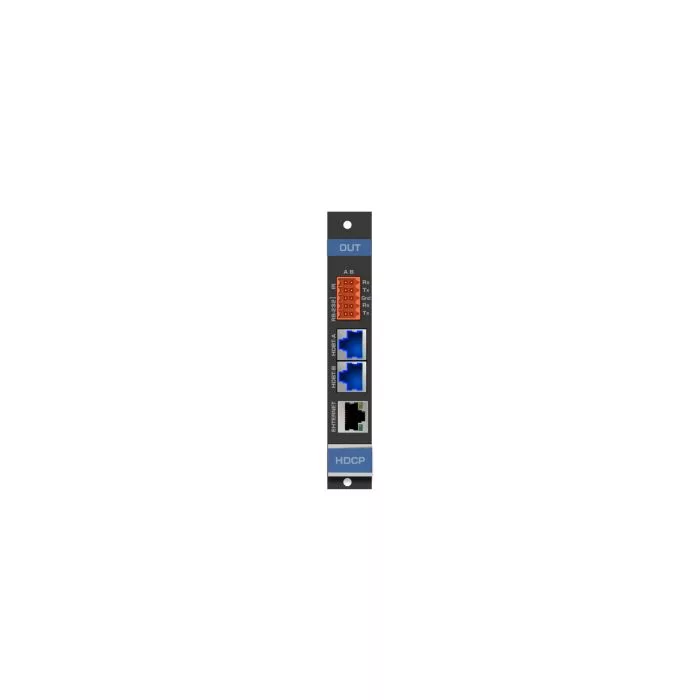

HDBT7−OUT2−F16 is a two−channel 4K60 4:2:0, long reach, HDBaseT output card for the VS−1616 Series Modular Multi−Format Digital Matrix Switchers. The HDBT7−OUT2−F16 outputs two long reach HDBaseT signals with bidirectional RS−232 and IR from the chassis to the line.
Pokaż pełny opisZwiń opis⌄
HDBT7−OUT2−F16 is a two−channel 4K60 4:2:0, long reach, HDBaseT output card for the VS−1616 Series Modular Multi−Format Digital Matrix Switchers. The HDBT7−OUT2−F16 outputs two long reach HDBaseT signals with bidirectional RS−232 and IR from the chassis to the line.
Max. Data Rate — 10.2 Gbps (3.4 Gbps per graphic channel).
Max. Range — 40m (130ft) — 4K60 4:2:0 or 4K30 4:4:4; 70m (230ft) — 1080p 12bit (deep color).
